Crusher Motors

Designed for Cage Mills, Jaw Crushers, Roller Crushers, Gyratory Crushers, Cone Crushers, Horizontal Shaft & Vertical Shaft Impact Crushers, Hammermills, Grizzly Feeders, Crusher Feeders, Rock Conveyors, and Primary/Secondary/Tertiary Crushers with Single or Double Shafts.

Features:

  • 1-100 Horsepower
  • 1800 RPM
  • Approved by Department of Energy
  • Labyrith Seal Both Drive End and Opposite Drive End as Standard on 586/7 Frames, Mechanical “V” Seal 143T – 449T Frames
  • Inverter Rated 10:1 Variable and 5:1 Constant Torque, (12 Lead) Capable of WYE-DELTA/PART Wind Start
  • TEFC, IP55 Protection as Standard, Suitable for Shaft Up and Shaft Down Applications
  • FC 200 Grade Cast Iron Frame with Solid Cast Iron Full Length Double Punched Feet
  • Cast Iron Fan Covers Standard for 586/7 Frames and an Option for all Motors
  • 4140 Grade Steel Shaft on 440T and 596/7 U and UZ Frames with Radius Cut Shoulder
  • Oversized Conduit Box – 586/7 Frame T Box Positioned to Increase Air Flow Resulting in Higher Efficiencies and Cooler Operating Temperatures
  • High Grade Silica Electrical Steel Core and Rotor with Extremely Low Core Losses
  • Class F Insulation System with Class H VPI Epoxy Resin Protection
  • Winding Space Heaters and Winding Thermistors Standard on ALL 586/7 Frames
  • Heavy Duty TermiBMI Block for Motor Leads, Heaters and Thermistors Standard on all 586/7 Frames
  • Extra High Starting Torques and High Breakdown Torque, NEMA Design C Performance and Higher from 1-100 HP

Catalog:

Catalog # HP RPM Frame Volts Specs
BC3-18-182T 3 1800 182T 208-230/460 View Specs
SPECIFICATIONS for # BC3-18-182T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1745 1.15 6306ZZ 6306ZZ 2.15
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
4 9.03 230 300 87.5 82 89

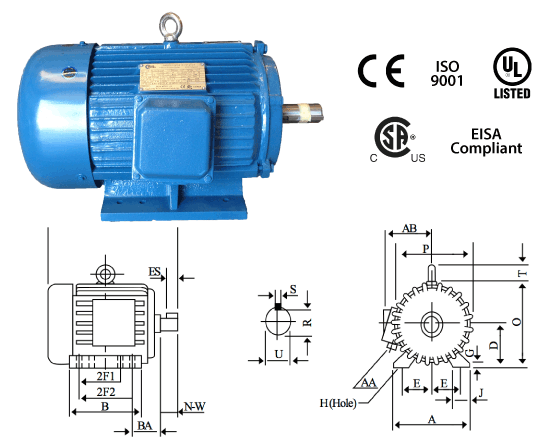

DIMENSIONS for # BC3-18-182T (use the diagram above)
A B C D E 2F G H J O
9.5 6.3 15.1 4.5 3.75 4.5 0.7 0.41 1.69 9.1
P R S T U AA AB BA ES N-W
8.7 0.986 0.25 1.6 1.125 .75 NPT 7.5 2.75 1.78 2.75
BC5-18-184T 5 1800 184T 208-230/460 View Specs
SPECIFICATIONS for # BC5-18-184T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1745 1.15 6306ZZ 6306ZZ 3.17
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
6.5 15.05 230 280 87.5 82 101
DIMENSIONS for # BC5-18-184T (use the diagram above)
A B C D E 2F G H J O
9.5 7.3 16.1 4.5 3.75 5.5 0.7 0.41 1.69 9.1
P R S T U AA AB BA ES N-W
8.7 0.986 0.25 1.6 1.125 .75 NPT 7.5 2.75 1.78 2.75
BC7.5-18-213T 7.5 1800 213T 208-230/460 View Specs
SPECIFICATIONS for # BC7.5-18-213T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1750 1.15 6308ZZ 6308ZZ 3.49
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
9.2 22.51 200 260 89.5 85 136
DIMENSIONS for # BC7.5-18-213T (use the diagram above)
A B C D E 2F G H J O
11 7.9 18.9 5.25 4.25 5.5 0.8 0.41 2.4 10.5
P R S T U AA AB BA ES N-W
10.2 1.201 0.312 1.9 1.375 1.00 NP 8.3 3.5 2.41 3.38
BC10-18-215T 10 1800 215T 208-230/460 View Specs
SPECIFICATIONS for # BC10-18-215T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1750 1.15 6308Z 6308ZZ 4.53
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
12 30.01 190 240 89.5 86 159
DIMENSIONS for # BC10-18-215T (use the diagram above)
A B C D E 2F G H J O
11 9.4 20.4 5.25 4.25 7 0.8 0.41 2.4 10.5
P R S T U AA AB BA ES N-W
10.2 1.201 0.312 1.9 1.375 1.00 NP 8.3 3.5 2.41 3.38
BC15-18-254T 15 1800 254T 208-230/460 View Specs
SPECIFICATIONS for # BC15-18-254T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1750 1.15 6309 6309 7.75
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
18.2 45.02 180 220 91 84 271
DIMENSIONS for # BC15-18-254T (use the diagram above)
A B C D E 2F G H J O
13 10.4 23.2 6.25 5 8.25 0.8 0.53 2.76 13
P R S T U AA AB BA ES N-W
12.4 1.416 0.375 2.2 1.625 1.25 NP 10.1 4.25 2.91 4
BC20-18-256T 20 1800 256T 208-230/460 View Specs
SPECIFICATIONS for # BC20-18-256T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1750 1.15 6309 6309 9.2
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
24.2 60.02 180 200 91 85 306
DIMENSIONS for # BC20-18-256T (use the diagram above)
A B C D E 2F G H J O
13 12.2 25 6.25 5 10 0.8 0.53 2.76 13
P R S T U AA AB BA ES N-W
12.4 1.416 0.375 2.2 1.625 1.25 NP 10.1 4.25 2.91 4
BC25-18-284T 25 1800 284T 208-230/460 View Specs
SPECIFICATIONS for # BC25-18-284T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1760 1.15 6310 6310 10.5
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
30 74.6 180 260 92.4 85 372
DIMENSIONS for # BC25-18-284T (use the diagram above)
A B C D E 2F G H J O
14 11.7 26.6 7 5.5 9.5 0.8 0.53 2.76 14.5
P R S T U AA AB BA ES N-W
14 1.591 0.5 2.2 1.875 1.50 NP 11.3 4.75 3.28 4.62
BC30-18-286T 30 1800 286T 208-230/460 View Specs
SPECIFICATIONS for # BC30-18-286T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1760 1.15 6311 6311 12
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
35.3 89.52 200 280 92.4 86 387
DIMENSIONS for # BC30-18-286T (use the diagram above)
A B C D E 2F G H J O
14 13.2 28.1 7 5.5 11 0.8 0.53 2.76 14.5
P R S T U AA AB BA ES N-W
14 1.591 0.5 2.2 1.875 1.50 NP 11.3 4.75 3.28 4.62
BC40-18-324T 40 1800 324T 208-230/460 View Specs
SPECIFICATIONS for # BC40-18-324T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1760 1.15 6312 6312 11.5
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
46.6 119.36 185 265 93 87 521
DIMENSIONS for # BC40-18-324T (use the diagram above)
A B C D E 2F G H J O
15.5 13.2 29.8 8 6.25 10.5 1 0.66 2.76 15.9
P R S T U AA AB BA ES N-W
15.7 1.845 0.5 2.6 2.125 2.00 NP 12.3 5.25 3.91 5.25
