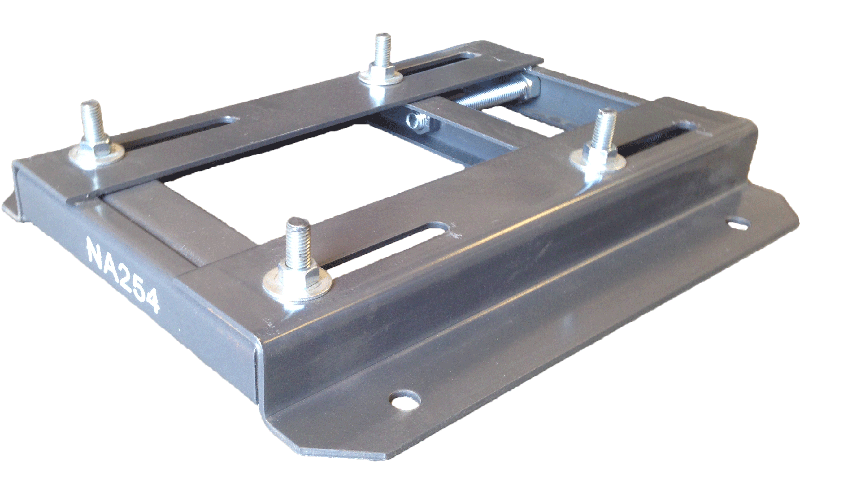

Motor Bases

Designed for Mounting Motors Securely

Features:

  • Bases are provided with washers
  • All sizes are double-adjusting screw style
  • Primed with Oven-Baked Primer for easy painting
  • All “D” bolts are fixed to the exact foot pattern of the motor to aid in easier motor installation
  • All “D” bolts (or Motor mounting bolts) are welded into position to prevent spinning and dropping from slots

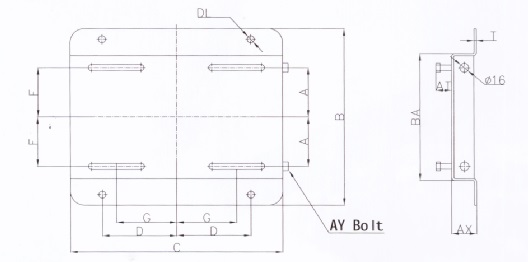

For mounts 56 - 286T

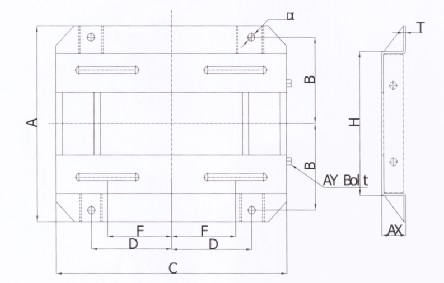

For mounts 324 - 505T

Catalog:

Catalog # Frame Weight (lbs) Dimensions
BM56 W56 3 Dimensions
DIMENSIONS for # BM56 (use the diagram above)
A B C D G F
2 7/8 6 1/2 10 5/8 3 13/16 2 7/16 1 1/2
BA T AX AY BOLT AT
4 1/2 .078 1 1/8 3/8*4 3/8*4
BM143 W143T 6 Dimensions
DIMENSIONS for # BM143 (use the diagram above)
A B C D G F
3 3/8 7 1/2 10 1/2 3 3/4 2 3/4 2
BA T AX AY BOLT AT
5 1/2 .119 1 1/8 3/8*4 3/8*4
BM145 W145T 7 Dimensions
DIMENSIONS for # BM145 (use the diagram above)
A B C D G F
3 7/8 8 1/2 10 1/2 3 3/4 2 3/4 2 1/2
BA T AX AY BOLT AT
6 1/2 .119 1 1/8 3/8*4 3/8*4
BM182 W182T 10 Dimensions
DIMENSIONS for # BM182 (use the diagram above)
A B C D G F
4 1/4 9 1/2 12 3/4 4 1/2 3 3/4 2 1/4
BA T AX AY BOLT AT
6 1/2 .134 1 1/2 1/2*6 1/2*6
BM184 W184T 10 Dimensions
DIMENSIONS for # BM184 (use the diagram above)
A B C D G F
4 3/4 10 1/2 12 3/4 4 1/2 3 3/4 2 3/4
BA T AX AY BOLT AT
7 1/2 .134 1 1/2 1/2*6 1/2*6
BM213 W213T 15 Dimensions
DIMENSIONS for # BM213 (use the diagram above)
A B C D G F
4 3/4 11 15 5 1/4 4 1/4 2 3/4
BA T AX AY BOLT AT
7 1/2 .164 1 3/4 1/2*6 1/2*6
BM215 W215T 17 Dimensions
DIMENSIONS for # BM215 (use the diagram above)
A B C D G F
5 1/2 12 1/2 15 5 1/4 4 1/4 3 1/2
BA T AX AY BOLT AT
9 .164 1 3/4 1/2*6 1/2*6
BM254 W254T 19 Dimensions
DIMENSIONS for # BM254 (use the diagram above)
A B C D G F
6 5/8 15 1/8 17 3/4 6 1/4 5 4 1/8
BA T AX AY BOLT AT
10 3/4 3/16 2 5/8*6 5/8*6
BM256 W256T 20 Dimensions
DIMENSIONS for # BM256 (use the diagram above)
A B C D G F
7 1/2 16 7/8 17 3/4 6 1/4 5 5
BA T AX AY BOLT AT
12 1/2 3/16 2 5/8*6 5/8*6
BM284 W284T 24 Dimensions
DIMENSIONS for # BM284 (use the diagram above)
A B C D G F
7 1/2 16 7/8 19 3/4 7 5 1/2 4 3/4
BA T AX AY BOLT AT
12 1/2 3/16 2 5/8*6 5/8*6
BM286 W286T 25 Dimensions
DIMENSIONS for # BM286 (use the diagram above)
A B C D G F
8 1/4 18 3/8 19 3/4 7 5 1/2 5 1/2
BA T AX AY BOLT AT
14 3/16 2 5/8*6 5/8*6
BM324 W324T 35 Dimensions
DIMENSIONS for # BM324 (use the diagram above)
A B C D F
19 1/4 8 1/2 22 3/4 8 6 1/4
H T AX DI AY BOLT
14 3/16 2 1/2 3/4 3/4*9
BM326 W326T 36 Dimensions
DIMENSIONS for # BM326 (use the diagram above)
A B C D F
20 3/4 9 1/4 22 3/4 8 6 1/4
H T AX DI AY BOLT
15 1/2 3/16 2 1/2 3/4 3/4*9
BM364 W364T 49 Dimensions
DIMENSIONS for # BM364 (use the diagram above)
A B C D F
20 1/2 9 1/8 25 1/2 9 7
H T AX DI AY BOLT
15 1/2 1/4 2 1/2 3/4 3/4*9
BM365 W365T 50 Dimensions
DIMENSIONS for # BM365 (use the diagram above)
A B C D F
21 1/2 9 5/8 25 1/2 9 7
H T AX DI AY BOLT
16 1/2 1/4 2 1/2 3/4 3/4*9
BM404 W404T 66 Dimensions
DIMENSIONS for # BM404 (use the diagram above)
A B C D F
22 3/8 9 7/8 28 3/4 10 8
H T AX DI AY BOLT
16 1/2 1/4 3 7/8 3/4*11
BM405 W405T 68 Dimensions
DIMENSIONS for # BM405 (use the diagram above)
A B C D F
23 7/8 10 5/8 28 3/4 10 8
H T AX DI AY BOLT
18 1/4 3 7/8 3/4*11
BM444 W444T 74 Dimensions
DIMENSIONS for # BM444 (use the diagram above)
A B C D F
24 5/8 11 31 1/4 11 9
H T AX DI AY BOLT
19 1/4 1/4 3 7/8 3/4*11
BM445 W445T 76 Dimensions
DIMENSIONS for # BM445 (use the diagram above)
A B C D F
26 5/8 12 31 1/4 11 9
H T AX DI AY BOLT
21 1/4 1/4 3 7/8 3/4*11
BM447 W447T 102 Dimensions
DIMENSIONS for # BM447 (use the diagram above)
A B C D F
30 1/8 13 3/4 31 1/4 11 9
H T AX DI AY BOLT
24 3/4 5/16 3 7/8 3/4*11
BM449 W449T 105 Dimensions
DIMENSIONS for # BM449 (use the diagram above)
A B C D F
35 1/8 16 1/4 31 1/4 11 9
H T AX DI AY BOLT
29 3/4 5/16 3 7/8 3/4*11
BM505 W505T 137 Dimensions
DIMENSIONS for # BM505 (use the diagram above)
A B C D F
30 13 1/2 35 12 1/2 10
H T AX DI AY BOLT
22 3/4 5/16 3 1/2 1 7/8*12
