Oil Pump Motors

Specifically Designed for Use on Oil Well Pumping Units

Features:

  • 3-100 Horsepower
  • 1200 RPM NEMA Design D
  • High Torque/High Slip (5%-8%)
  • AC Inverter Rated | 10: Variable Torque | 5: Constant Torque
  • Double Punched Foot Design
  • Greasable Bearings on 254T Frame and Above
  • Oversized Cast Iron Conduit Box
  • Heavy Gauge Steel Fan Cover
  • Oversized Bearings on both Drive End and Opposite Drive End
  • Shaft is Made of 1045 Carbon Steel
  • FC 200 Cast Iron Construction
  • Thermistors in the Windings
  • Class F Insulation System with Class H VPI Epoxy Resin Protection
  • Totally Enclosed Fan Cooled Protection

Catalog:

Catalog # HP RPM Frame Volts Specs
BOP3-12-213T 3 1200 213T 230/460/796 View Specs
SPECIFICATIONS for # BOP3-12-213T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1125 1.15 6308ZZ 6308ZZ 21.1
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
5 14.01 250 231 82.4 67 170

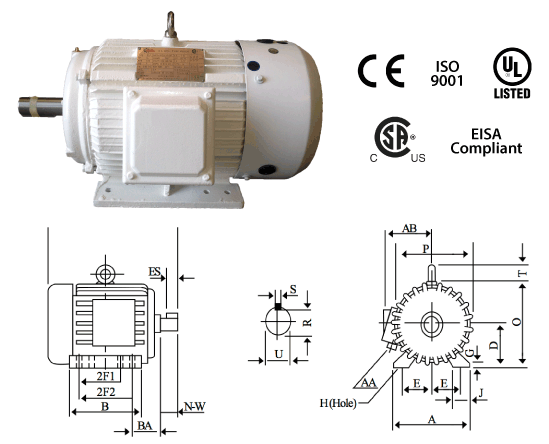

DIMENSIONS for # BOP3-12-213T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
10.4 9.3 20.08 5.25 8.5 5.5 7 0.41 2.4 13
P R S U ES AA NPT AB AF BA N-W
12.2 1.201 0.312 1.375 2.44 1 11.4 3.84 3.5 3.38
BOP5-12-215T 5 1200 215T 230/460/796 View Specs
SPECIFICATIONS for # BOP5-12-215T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1080 1.15 6308ZZ 6308ZZ 35.9
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
8.1 24.31 279 241 80.8 71 205
DIMENSIONS for # BOP5-12-215T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
10.4 9.3 20.08 5.25 8.5 5.5 7 0.41 2.4 13
P R S U ES AA NPT AB AF BA N-W
12.2 1.201 0.312 1.375 2.44 1 11.4 3.84 3.5 3.38
BOP7.5-12-254T 7.5 1200 254T 230/460/796 View Specs
SPECIFICATIONS for # BOP7.5-12-254T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1095 1.15 6309 6309 56.7
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
11.8 35.97 275 250 79.2 73.9 342
DIMENSIONS for # BOP7.5-12-254T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
12.4 12.4 25.2 6.25 10 8.25 10 0.53 2.76 15.55
P R S U ES AA NPT AB AF BA N-W
14 1.416 0.375 1.625 2.91 1.25 13.58 5.5 4.25 4
BOP10-12-256T 10 1200 256T 230/460/796 View Specs
SPECIFICATIONS for # BOP10-12-256T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1090 1.15 6309 6309 76.5
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
15.5 48.18 285 253 81.5 79.4 487
DIMENSIONS for # BOP10-12-256T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
12.4 12.4 25.2 6.25 10 8.25 10 0.53 2.76 15.55
P R S U ES AA NPT AB AF BA N-W
14 1.416 0.375 1.625 2.91 1.25 13.58 5.5 4.25 4
BOP15-12-284T 15 1200 284T 230/460/796 View Specs
SPECIFICATIONS for # BOP15-12-284T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1120 1.15 6310 6310 119.2
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
20.5 70.34 298 297 84.8 79.4 487
DIMENSIONS for # BOP15-12-284T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
13.7 13.7 28.5 7 11 9.5 11 0.53 2.76 17.52
P R S U ES AA NPT AB AF BA N-W
15.9 1.591 0.5 1.875 3.31 1.5 14.37 5.5 4.25 4.62
BOP20-12-286T 20 1200 286T 230/460/796 View Specs
SPECIFICATIONS for # BOP20-12-286T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1115 1.15 6310 6310 154.5
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
27.4 94.21 290 254 84.6 81.2 518
DIMENSIONS for # BOP20-12-286T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
13.7 13.7 28.5 7 11 9.5 11 0.53 2.76 17.52
P R S U ES AA NPT AB AF BA N-W
15.9 1.591 0.5 1.875 3.31 1.5 14.37 5.5 4.25 4.62
BOP25-12-324T 25 1200 324T 230/460/796 View Specs
SPECIFICATIONS for # BOP25-12-324T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1120 1.15 6312 6312 179.5
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
32.8 117.23 269 236 86.7 81.7 589
DIMENSIONS for # BOP25-12-324T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
15.6 14.9 31.8 8 12.5 10.5 12 0.66 2.76 19.9
P R S U ES AA NPT AB AF BA N-W
18.03 1.845 0.5 2.125 3.94 2 15.4 5.5 5.25 5.25
BOP30-12-326T 30 1200 326T 230/460/796 View Specs
SPECIFICATIONS for # BOP30-12-326T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1110 1.15 6312 6312 209.3
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
38.7 141.95 271 234 86.7 82.3 675
DIMENSIONS for # BOP30-12-326T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
15.6 14.9 31.8 8 12.5 10.5 12 0.66 2.76 19.9
P R S U ES AA NPT AB AF BA N-W
18.03 1.845 0.5 2.125 3.94 2 15.4 5.5 5.25 5.25
BOP40-12-365T 40 1200 365T 230/460/796 View Specs
SPECIFICATIONS for # BOP40-12-365T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1115 1.15 6314 6314 299.5
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
52.4 188.41 272 229 86 83.6 884
DIMENSIONS for # BOP40-12-365T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
17.1 15.5 34.84 9 14 11.25 12.25 0.66 2.95 22
P R S U ES AA NPT AB AF BA N-W
19.7 2.021 0.625 2.375 4.29 3 17.1 6.38 5.88 5.88
BOP50-12-404T 50 1200 404T 230/460/796 View Specs
SPECIFICATIONS for # BOP50-12-404T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1110 1.15 6314 6314 371
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
60.4 236.58 314 251 87.4 88 902
DIMENSIONS for # BOP50-12-404T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
19.1 17 38.6 10 16 12.25 13.75 0.81 3.15 25
P R S U ES AA NPT AB AF BA N-W
21.8 2.45 0.75 2.875 5.71 3 18.7 6.38 6.62 7.25
BOP60-12-405T 60 1200 405T 230/460/796 View Specs
SPECIFICATIONS for # BOP60-12-405T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1105 1.15 6316 6316 448.2
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
74.4 285.18 323 247 87.1 87.2 1300
DIMENSIONS for # BOP60-12-405T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
19.1 17 38.6 10 16 12.25 13.75 0.81 3.15 25
P R S U ES AA NPT AB AF BA N-W
21.8 2.45 0.75 2.875 5.71 3 18.7 6.38 6.62 7.25
BOP75-12-444T 75 1200 444T 230/460/796 View Specs
SPECIFICATIONS for # BOP75-12-444T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1125 1.15 6318 6314 639.1
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
89.1 350.13 350 303 89.3 86.8 1724
DIMENSIONS for # BOP75-12-444T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
21.3 22 47 11 18 14.5 16.5 0.81 3.35 28
P R S U ES AA NPT AB AF BA N-W
24 2.88 0.875 3.375 6.93 3 21.3 7.9 7.5 8.5
BOP100-12-445T 100 1200 445T 230/460/796 View Specs
SPECIFICATIONS for # BOP100-12-445T
FULL LOAD RPM SERVICE FACTOR DE BEARING ODE BEARING LR AMPS
1125 1.15 6318 6314 860.8
FULL LOAD AT 460V FLT-Ft-Lb LRT% BDT% FULL LOAD % EFFICIENCY FULL LOAD % POWER FACTOR WEIGHT
120.6 466.84 368 301 89.6 87.1 1841
DIMENSIONS for # BOP100-12-445T (use the diagram above)
A B C D 2E 2F1 2F2 H J O+T
21.3 22 47 11 18 14.5 16.5 0.81 3.35 28
P R S U ES AA NPT AB AF BA N-W
24 2.88 0.875 3.375 6.93 3 21.3 7.9 7.5 8.5
